Weaving turns yarn into fabric by interlacing warp threads with weft in planned patterns, from simple plain cloth to engineered textiles for aerospace. Behind each fabric lies a specific loom action, shedding geometry, and yarn path that control cover, drape, thickness, and strength. This guide brings clarity to essential techniques used in mills and studios, linking structure to performance so learners can compare options with confidence. By mapping the motions, materials, and ideal applications, the overview helps you choose compact structures, open meshes, deep textures, or rapid production technologies. It frames the field through the lens of the Top 10 Weaving Methods and Looming Approaches.
Double Weave
Double weave forms two layers at once, either separate, interchanged, or connected, using two warps, two wefts, and careful tie points. Designers exploit it for reversible patterns, thermal insulation, and pockets for wiring or sensors. The method manages bulk without heavy yarns, because thickness comes from layered architecture. Control depends on accurate sett planning, balanced tensions, and a design map showing where layers cross or lock. Apparel uses include jackets and scarves, while industry uses include spacer fabrics and sound absorbing panels. When you need structure with hidden cavities, it belongs in the Top 10 Weaving Methods and Looming Approaches.
Jacquard Weave
Jacquard weaving gives individual control over each warp end through a patterning head, letting complex motifs emerge without repeating blocks. Every pick can call a unique warp selection, so pictures, large florals, and variable density zones are possible. The method supports high ends per inch and intricate color placement. It suits brocades, damasks, tapestry reproductions, and technical maps where stress or air flow must vary across the width. Successful use requires clean yarn, well maintained harness cords, and a robust design pipeline from artwork to weave file. For maximum pattern freedom, it anchors the Top 10 Weaving Methods and Looming Approaches.
Pile Weave
Pile weave adds a vertical third dimension by forming loops or cut tufts that rise above the ground cloth. Variants include warp pile like velvet and corduroy, and weft pile like terry towels. Pile height and density set absorbency, softness, and durability. Controlled cutting produces plush surfaces, while loop retention improves abrasion resistance. Weavers manage pile by extra beams, temple settings, and careful beat so the ground remains stable. Applications span carpets, upholstery, bath goods, and protective pads that cushion impact. For tactile depth and functional surface engineering, pile techniques stand within the Top 10 Weaving Methods and Looming Approaches.
Leno Weave
Leno weave twists paired warp ends around the weft to create stable open meshes that resist distortion. Because the crossed warps pin each pick, the fabric holds shape even with low thread counts and light weights. This makes sheer curtains, fruit bags, and filtration media that need airflow and visibility yet must not ravel. Leno devices or doup heddles guide the twist in sync with picks. Yarn selection favors strong, low stretch fibers so apertures stay uniform under load. When designers require breathability with anti-slip stability, leno structures rightly appear in the Top 10 Weaving Methods and Looming Approaches.
Handloom Weaving

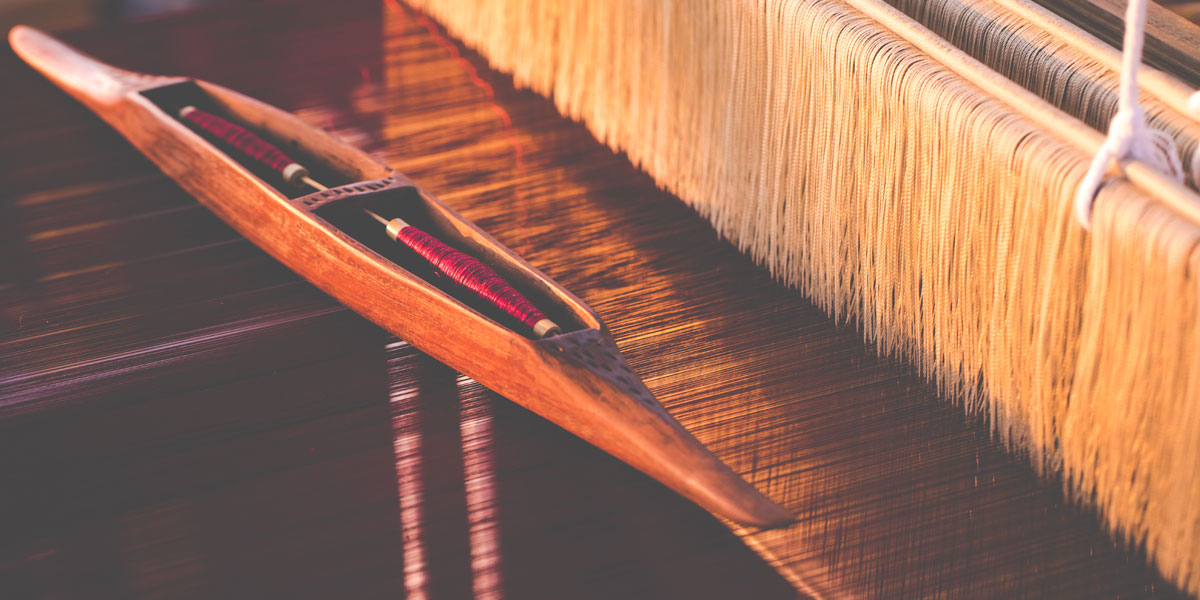

Handloom weaving centers human touch, enabling responsive control over beat, tension, and selvage that a power loom may not replicate. It suits small batches, teaching, heritage patterns, and experimental yarns like slub, hand spun, or conductive filaments. The maker can adjust on the fly to correct floats or change color order, and can add inlay or hand manipulated lace. Although slower, the process supports exceptional quality and mindful craft. It links cultural knowledge with modern design education. For bespoke fabrics, sampling, and skill transfer, handloom practice remains a core pillar within the Top 10 Weaving Methods and Looming Approaches.
Projectile Weaving
Projectile weaving propels a small metal carrier that grips the weft and shoots it across an open shed, handing off to the next projectile for wide widths with a single yarn package. Because only the carrier moves, air and power use are modest, and heavy or abrasive yarns like glass or metal can run reliably. The system suits very wide technical fabrics, including tarpaulins and base cloths for coatings. Maintenance focuses on guide wear, timing, and projectile retrieval. Where width, yarn toughness, and energy efficiency matter more than top speed, projectile technology earns a place in the Top 10 Weaving Methods and Looming Approaches.
Dobby Weaving
Dobby weaving controls small pattern repeats by lifting selected harness frames each pick, producing textures like honeycomb, birds eye, pique, and geometric ribs. It covers the space between plain weave and full Jacquard, giving strong versatility with simple setup. Dobby design hinges on peg plans or digital lift plans that map frame combinations to structure. With two color wefts or colormix warps, designers create lively yet economical effects for shirts, table linens, and mattress ticking. Operators monitor balance and take up to prevent bowing. For repeatable mid-scale patterning, the dobby platform is central to the Top 10 Weaving Methods and Looming Approaches.
Multiaxial Weaving
Multiaxial weaving aligns yarns in more than two directions, commonly adding bias orientations like plus or minus forty-five degrees to the standard warp and weft. The goal is to tailor stiffness and strength for loads that act in several directions, as in wind blades, skis, and protective panels. Looms manipulate multiple warp systems or insert additional wefts in sequence, sometimes combining with stitch bonding. Fiber choices include carbon, aramid, and high modulus glass. Careful control of layer registry prevents misalignment. When you need orthotropic performance through architecture, multiaxial formats are key elements of the Top 10 Weaving Methods and Looming Approaches.
Air Jet Weaving
Air jet weaving uses controlled air pulses to carry the weft across the shed through profiled nozzles and relay jets. It is the fastest shuttleless method for light to medium yarns, giving high output with low vibration. Energy goes into compressed air, so optimization focuses on leak prevention, nozzle condition, and precise timing. Yarn selection favors smooth, low hair fibers that entrain well. Typical products are shirtings, linings, and denims where speed and uniformity pay off. Mill engineers track air use per meter and cloth quality. For rapid, clean insertion, air jets take a leading spot in the Top 10 Weaving Methods and Looming Approaches.
Water Jet Weaving
Water jet weaving launches the weft with a fine water stream along the shed, yielding smooth edges and quiet running on hydrophobic filament yarns like polyester and nylon. Moisture management and water quality control are essential, with filtration and rust prevention built into the system. The method gives high speed and low yarn stress, but it is unsuitable for absorbent fibers or water sensitive finishes. Common uses include taffetas, linings, and lightweight technical cloth. Effluent handling and local regulations must be addressed. When filament fabrics are the target and facilities exist, water jets deserve inclusion in the Top 10 Weaving Methods and Looming Approaches.
