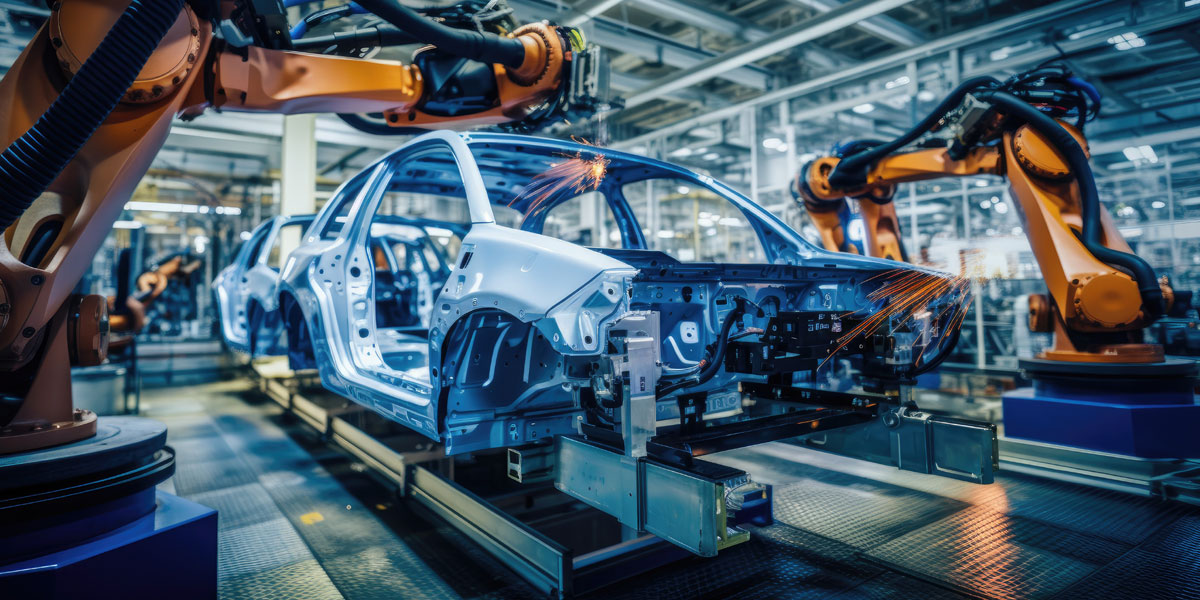

Modern vehicle manufacturing depends on precise, repeatable joining of metals that must withstand vibration, crash loads, and corrosion in service. This guide explains the Top 10 Automotive Spot, MIG, and Laser Welding Methods used across body, chassis, and battery production. You will learn where each process fits, how it controls heat and distortion, and why factories pair skilled technicians with robots, sensors, and data. We keep the language simple for beginners, yet include advanced notes for practitioners who plan and troubleshoot. By the end you can compare speed, strength, quality control, and suitability for steel, aluminum, and mixed materials.
#1 Resistance Spot Welding for Body Panels
Automotive bodies in white rely on resistance spot welding to clamp two or three sheet steel layers between copper electrodes and pass high current that forms a nugget. Cycle time is fast, typically a fraction of a second, which suits robotic arms on moving lines. Engineers tune electrode force, current, and squeeze time to manage coatings and material thickness. Quality is verified with dynamic resistance monitoring, peel tests, and ultrasonic checks. Advantages include low filler cost and strong lap joints; limits include spacing constraints and challenges with thick aluminum.
#2 MIG MAG Welding for Structural Parts
Gas metal arc welding, often called MIG or MAG depending on shielding gas, feeds a consumable wire through a torch to create continuous fillet or butt welds. Automotive uses include subframes, exhaust components, seat structures, and repair. Robots add consistent travel speed and torch angles, while pulse waveforms cut spatter and heat input. Engineers select solid or metal cored wires to balance deposition rate and penetration. Key controls include contact tip to work distance, stickout, and voltage trim. It excels on mild steel; aluminum requires push pull guns and careful cleaning.
#3 Laser Beam Welding for High Speed Seams
Laser welding focuses light into a tiny keyhole that fuses metal with minimal distortion and narrow heat affected zones. Automotive lines use scanner optics for remote welding of roofs, doors, and battery trays. Welds can reach meters per minute, and seam accuracy is excellent when fixtures are stable. Sensors track plume, back reflection, and temperature to control penetration. Hybrid laser arc variants add filler to bridge gaps. Strengths include speed and aesthetics; limits include fit up sensitivity, reflective aluminum management, capital cost, and strict eye safety procedures.
#4 Laser Brazing for Visible Roof Joints
Where outer panels must look flawless, factories choose laser brazing with copper silicon filler to join steel or galvanized steel with a smooth, paint ready seam. The laser melts the filler, not the base metal, which reduces distortion and avoids spatter that would harm appearance. Torch angle, wire preheating, and shielding gas coverage keep wetting consistent along curved paths. Robots track gaps with vision and maintain standoff with seam finding routines. Benefits include little post processing and excellent corrosion performance; limitations include precise fit requirements and sensitivity to surface contamination.
#5 Cold Metal Transfer Variants for Thin Aluminum
Cold metal transfer is a controlled short circuit transfer where the wire retracts during detachment to lower heat input. Automotive plants use CMT style processes for aluminum closures and battery enclosures where distortion must stay low. Advantages include reduced burn through and neat bead appearance with minimal spatter. Engineers combine pulsed currents, push pull feeding, and thorough oxide removal to stabilize arcs. Joint designs favor lap and edge welds with backing bars. Cautions include slower travel than spray transfer and the need for precise torch positioning to avoid lack of fusion.
#6 Projection Welding for Nuts and Fasteners
Projection welding is a resistance process that uses small raised features on a nut, bolt, or stamped part to focus current and force, creating multiple nuggets. Automotive body shops attach threaded nuts and studs to inner panels quickly without adding filler metal. Dedicated tooling aligns parts, while current schedules and electrode profiles maintain consistency across different coatings. Advantages include precise location and short cycle times. Engineers watch for expulsion and electrode wear, and they audit strength with torque tests. It suits steel best; aluminum variants exist but need careful surface preparation and higher currents.
#7 Remote Laser Spot and Stitch Welding
Remote laser cells use high speed scanners to place discrete spots or short stitches without moving the robot between each location. This increases throughput for doors, hatches, and seat components where many small attachments are needed. Process windows depend on beam diameter, wobble patterns, and pulse energy. Engineers program dynamic seam tracking and part presence checks to avoid missed welds when gaps shift. Benefits include minimal tooling, excellent access, and low distortion. Challenges include reflection management on bright surfaces and strict maintenance of optics to keep power density and spot repeatability stable.
#8 Resistance Seam Welding with Rolling Electrodes
Instead of discrete spots, this resistance method uses wheel shaped electrodes to produce a continuous overlapping seam. Automotive applications include stainless exhausts, transmission bands, and sealed coolant channels in battery plates. Parameter control covers wheel pressure, current, and speed to balance penetration and leak tightness. Copper wheel dress and water cooling are essential to keep contact stable over long runs. Advantages include uniform seams without filler and good automation potential. Limits include sensitivity to surface scale and geometry; complex three dimensional paths demand precise fixturing and careful electrode alignment.
#9 Friction Stir Welding for EV Battery Structures
Friction stir welding uses a rotating tool that plunges into abutting aluminum, plasticizing the material and stirring a solid phase joint. Automotive makers use it for long, leak tight seams in battery trays and crash members where low distortion is critical. Benefits include excellent mechanical properties, little porosity, and no filler wire or shielding gas. Engineers must control tool geometry, plunge depth, tilt angle, and travel speed to avoid defects. Process monitoring tracks torque and temperature signatures. Limitations include joint access, clamping complexity, and slower cycle time compared with laser for thin gauge parts.
#10 MIG Brazing of Galvanized Steels
MIG brazing uses a copper silicon wire and controlled heat input to wet galvanized steel without melting much base metal, which preserves coatings and reduces distortion. It is popular for body repairs and for factory joints near visible surfaces that need clean appearance. Process parameters include low voltage, short stickout, and steady travel speed to maintain spreading. Engineers often use inductive preheating to improve wetting on thicker parts. Strength comes from bond area rather than deep penetration, so joint design and cleanliness are important. Cautions include fume control and thorough post weld sealing to protect against corrosion.
